3D
3D Print
3D Print
12. March 2024
Practical CAD models designed for 3D printing and technical prototyping, created in Autodesk Fusion and Cinema 4D.
Overview
Fusion is a CAD software used for precise 3D modeling and technical drawings. I started learning it to create accurate parts for 3D printing and to better understand mechanical design and tolerances. The goal was to combine technical accuracy with functional usability. From small everyday parts to customized components.

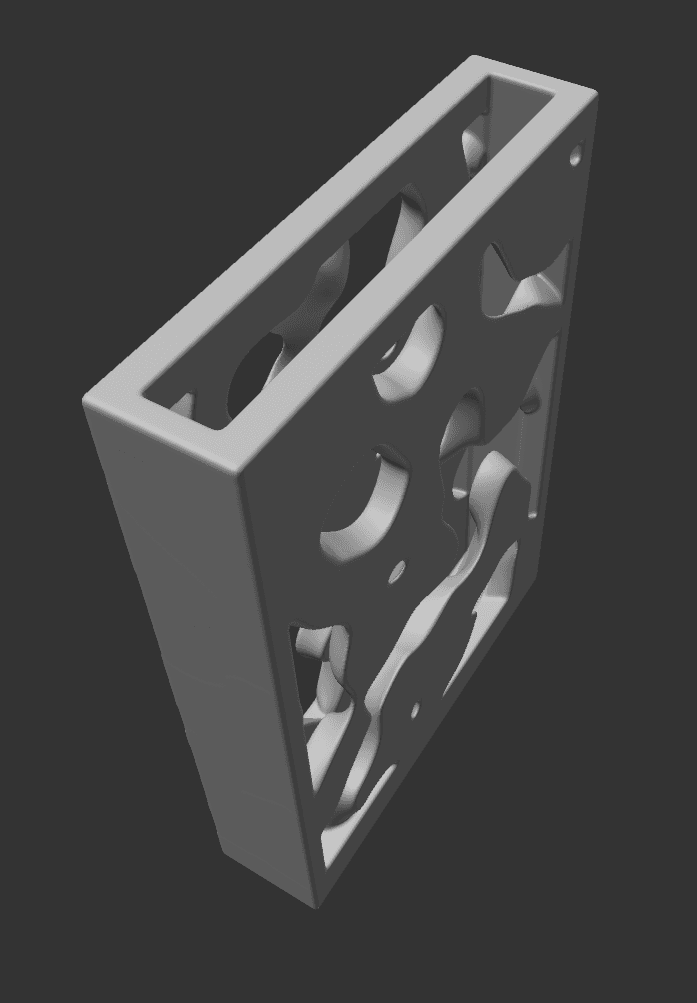

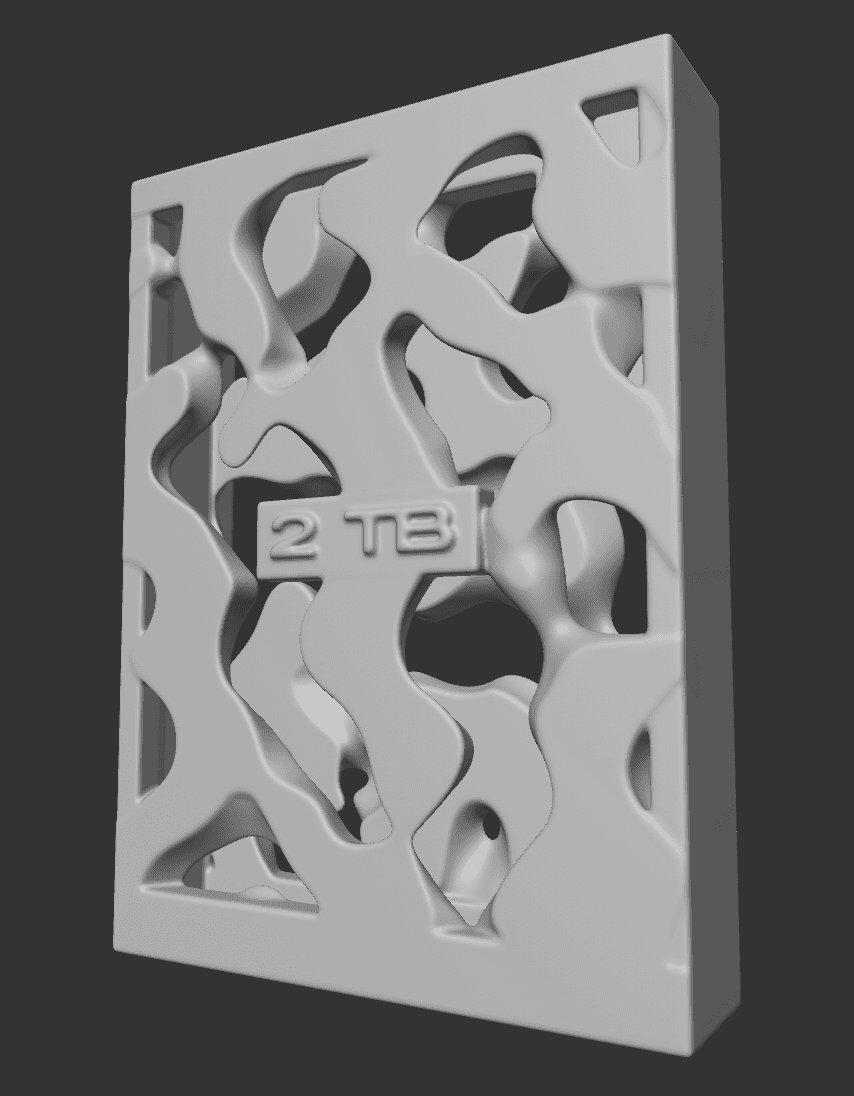

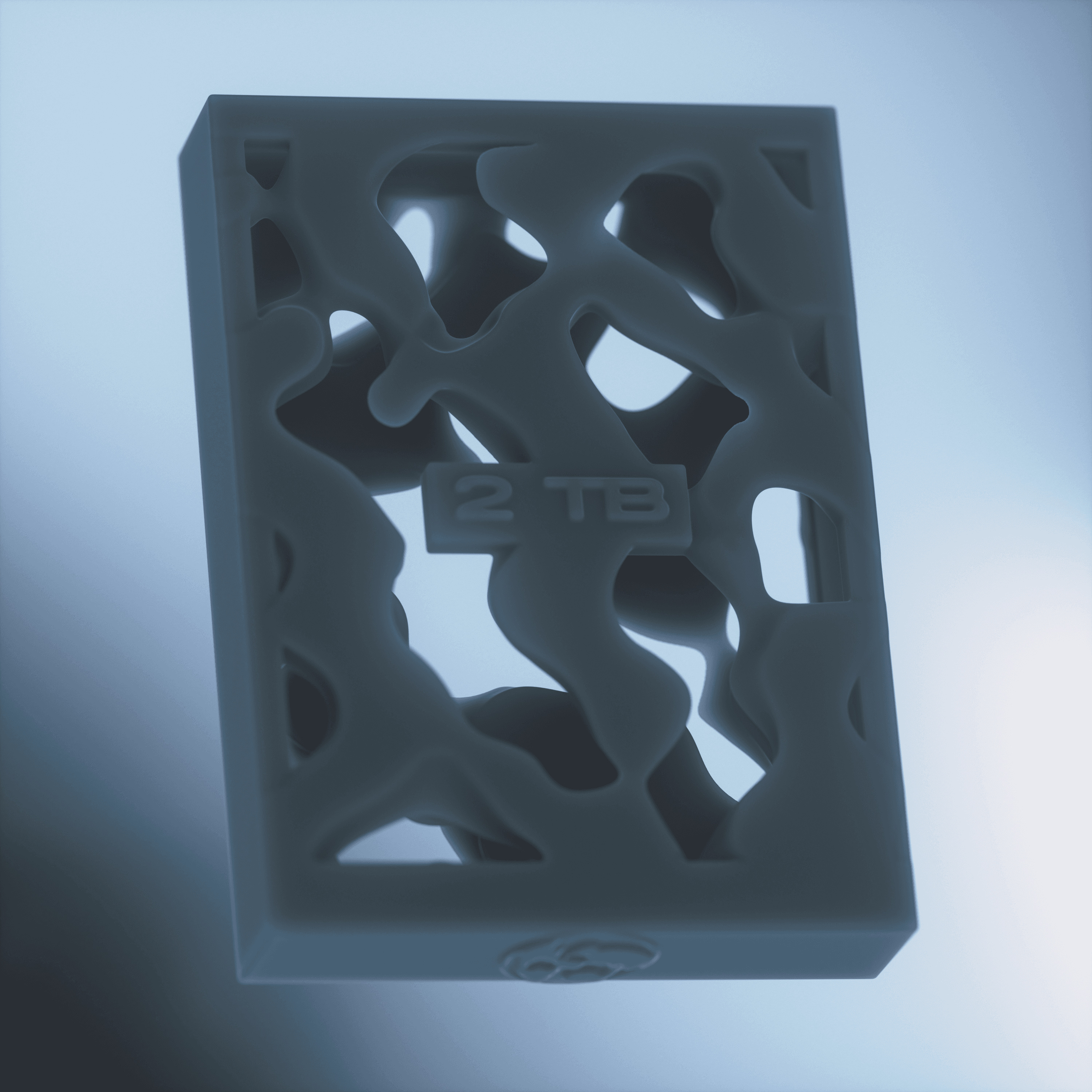

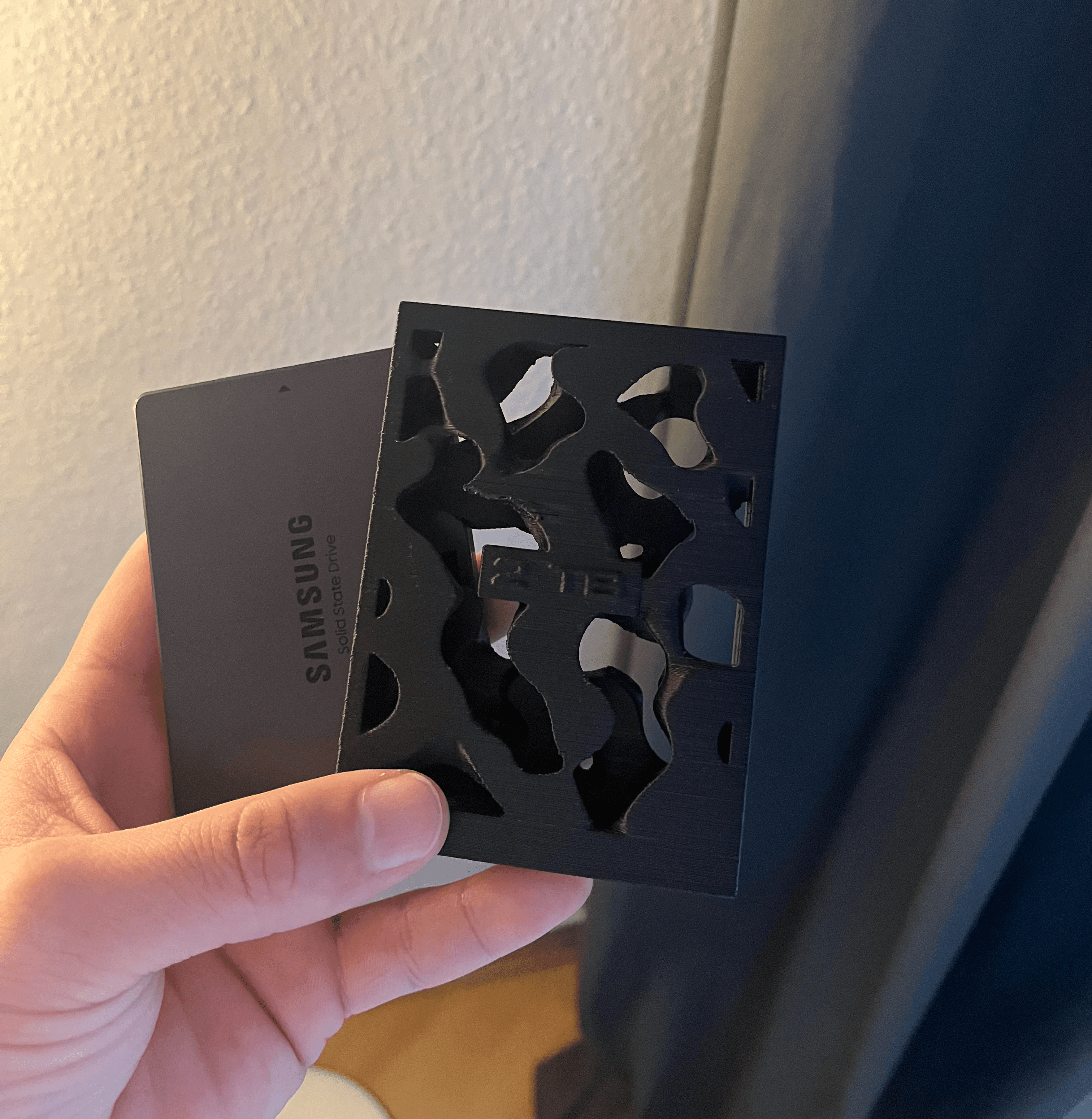

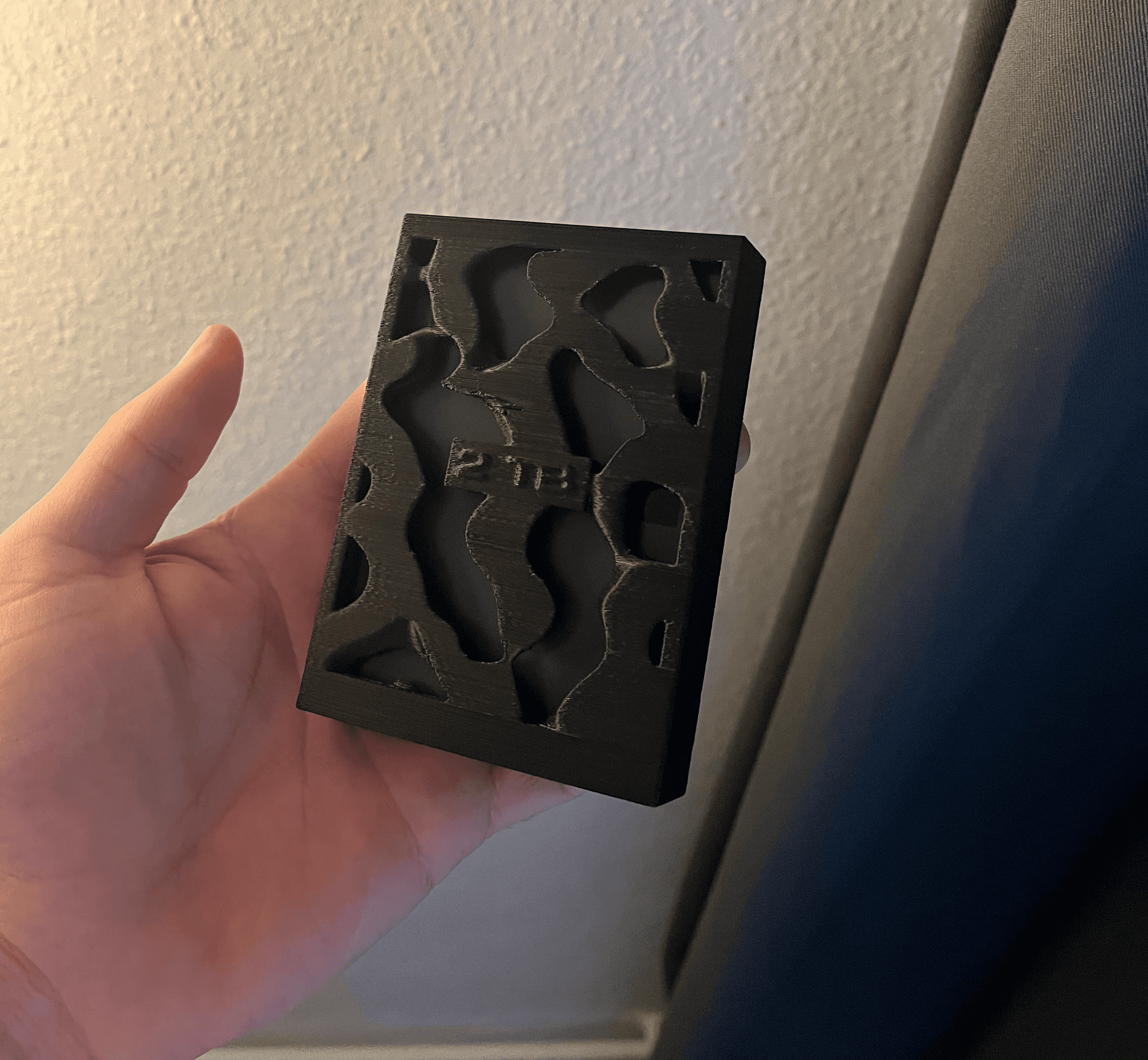

SSD Case

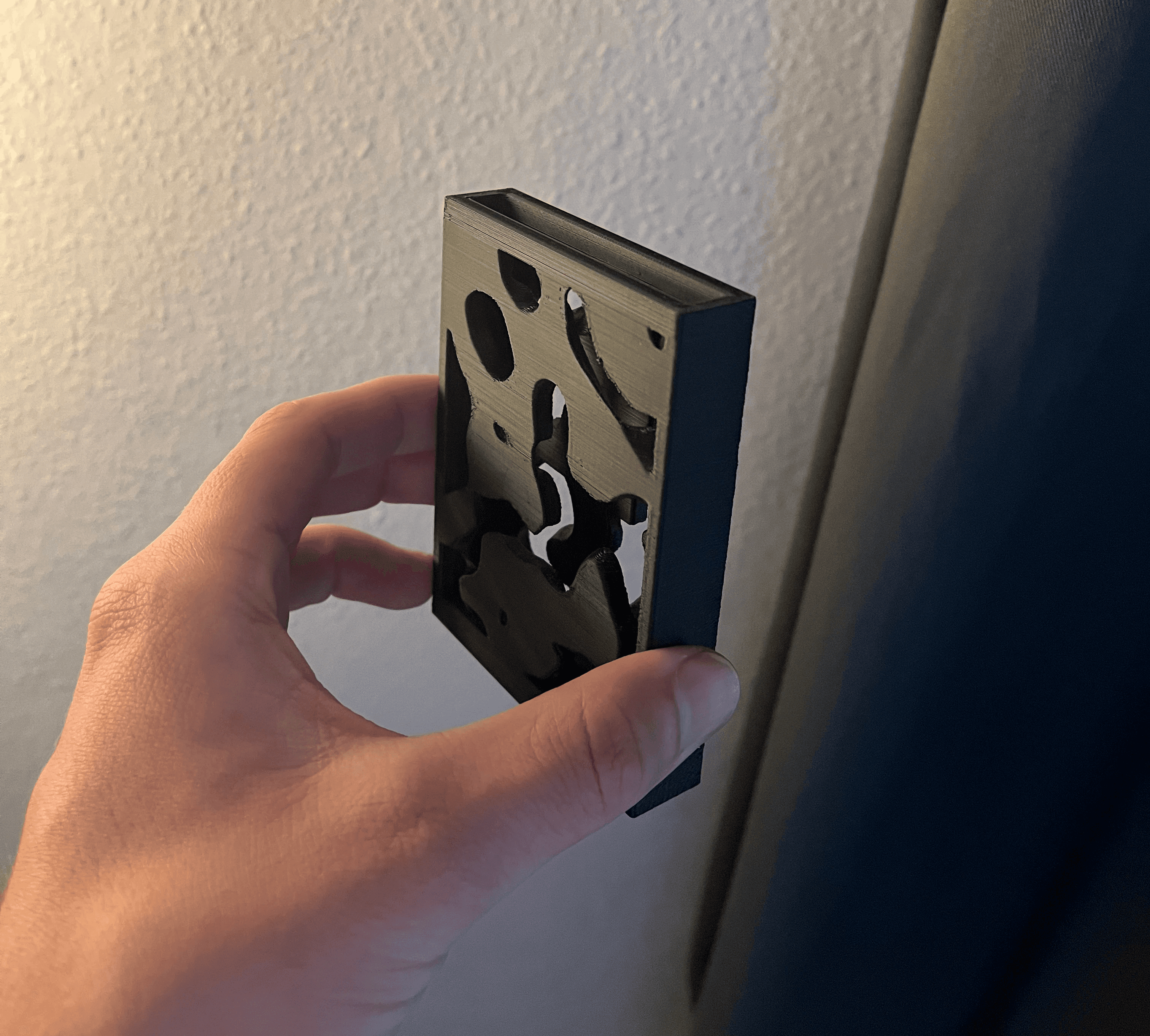

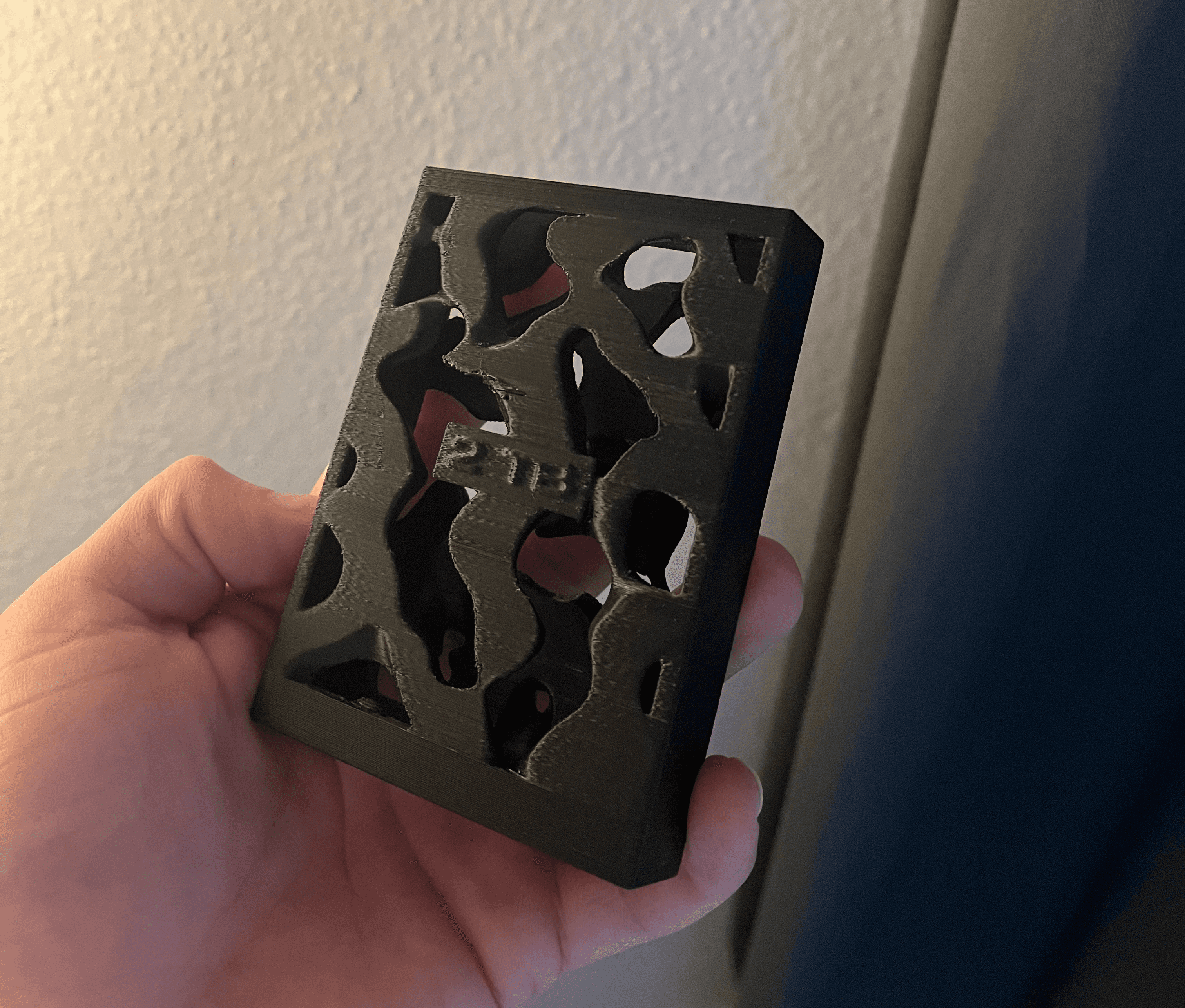

A small protective SSD case designed for 3D printing. The model was created in Cinema 4D with a focus on tight fitting and easy printability. The final version was printed in PLA and successfully tested for everyday use.

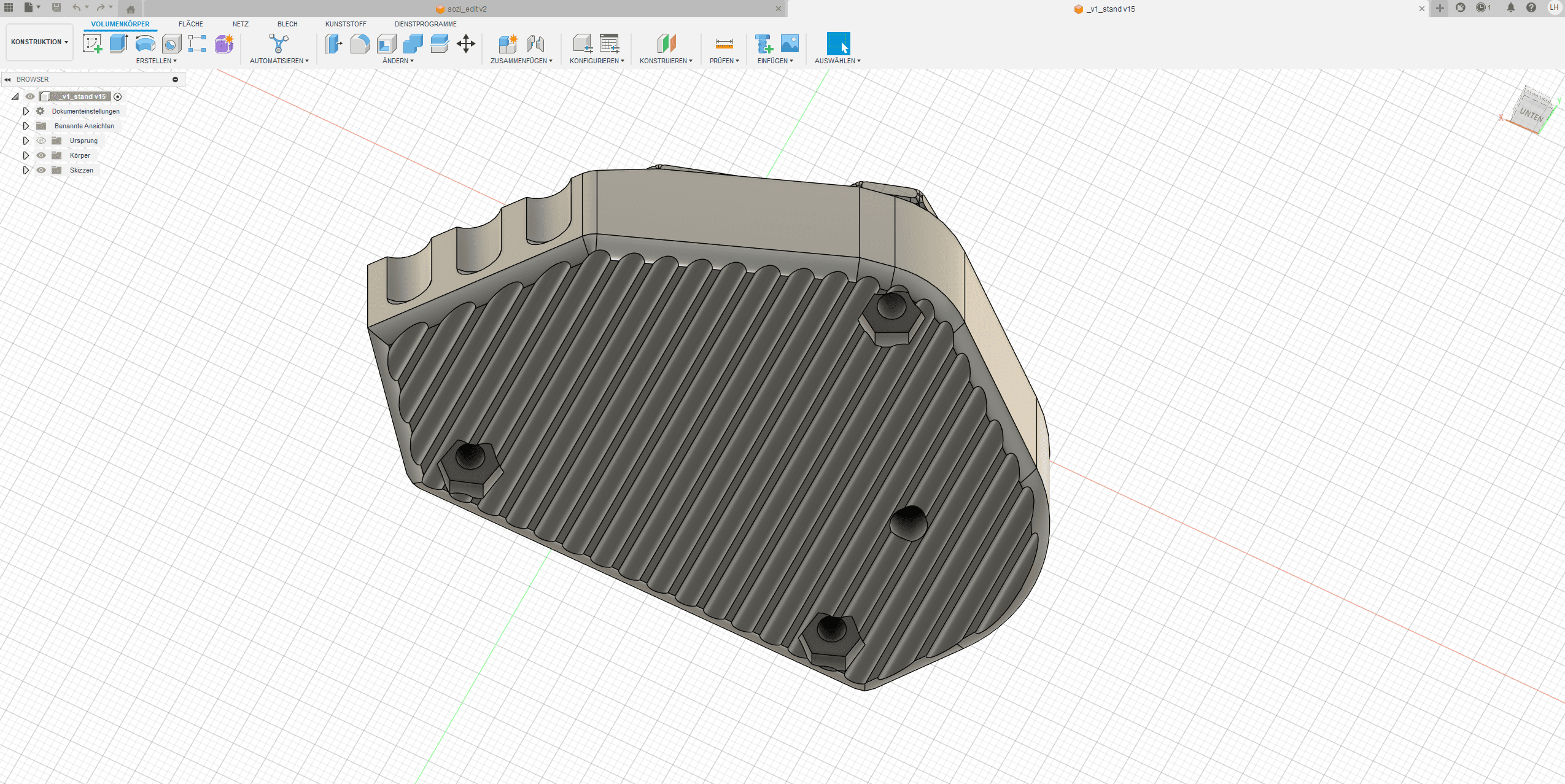

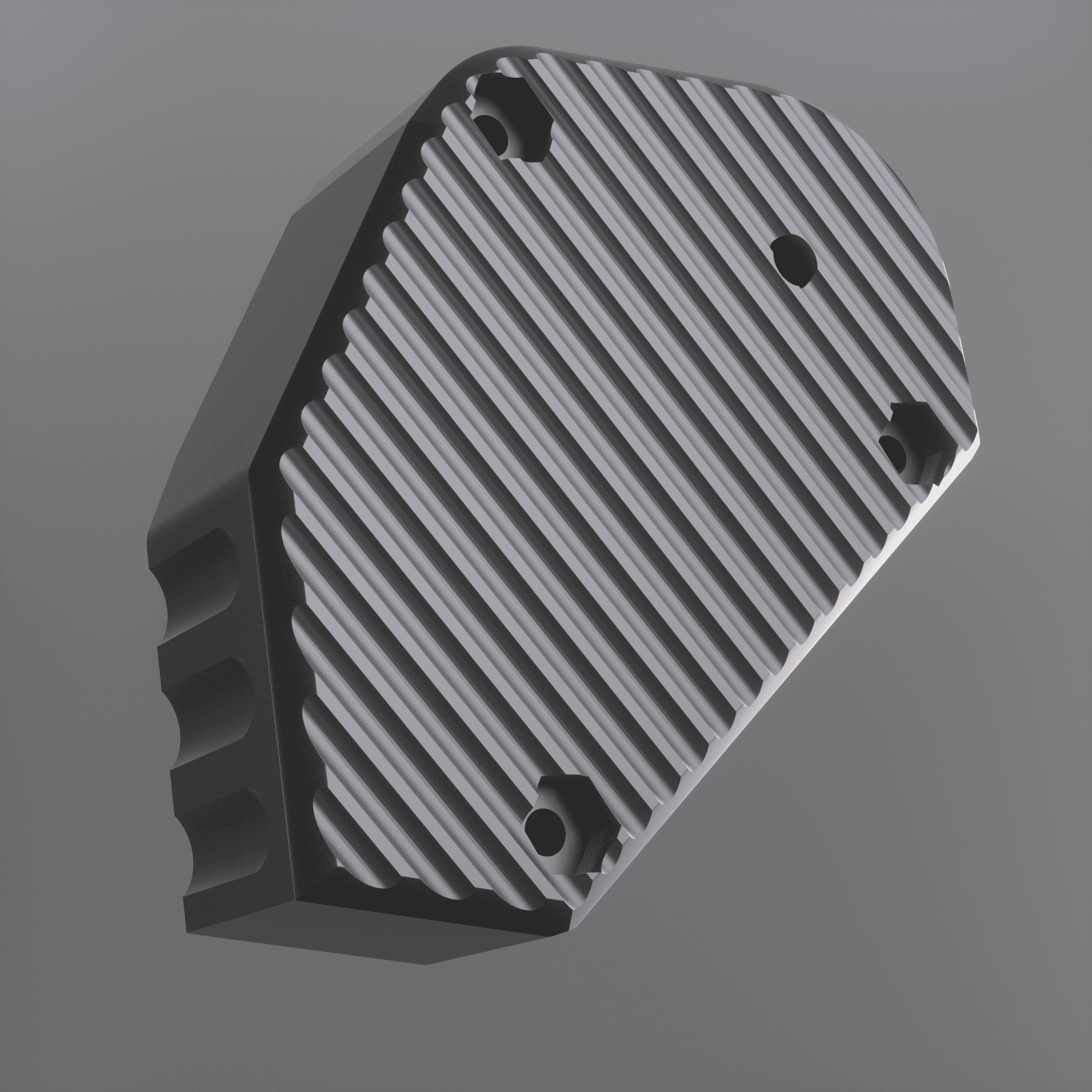

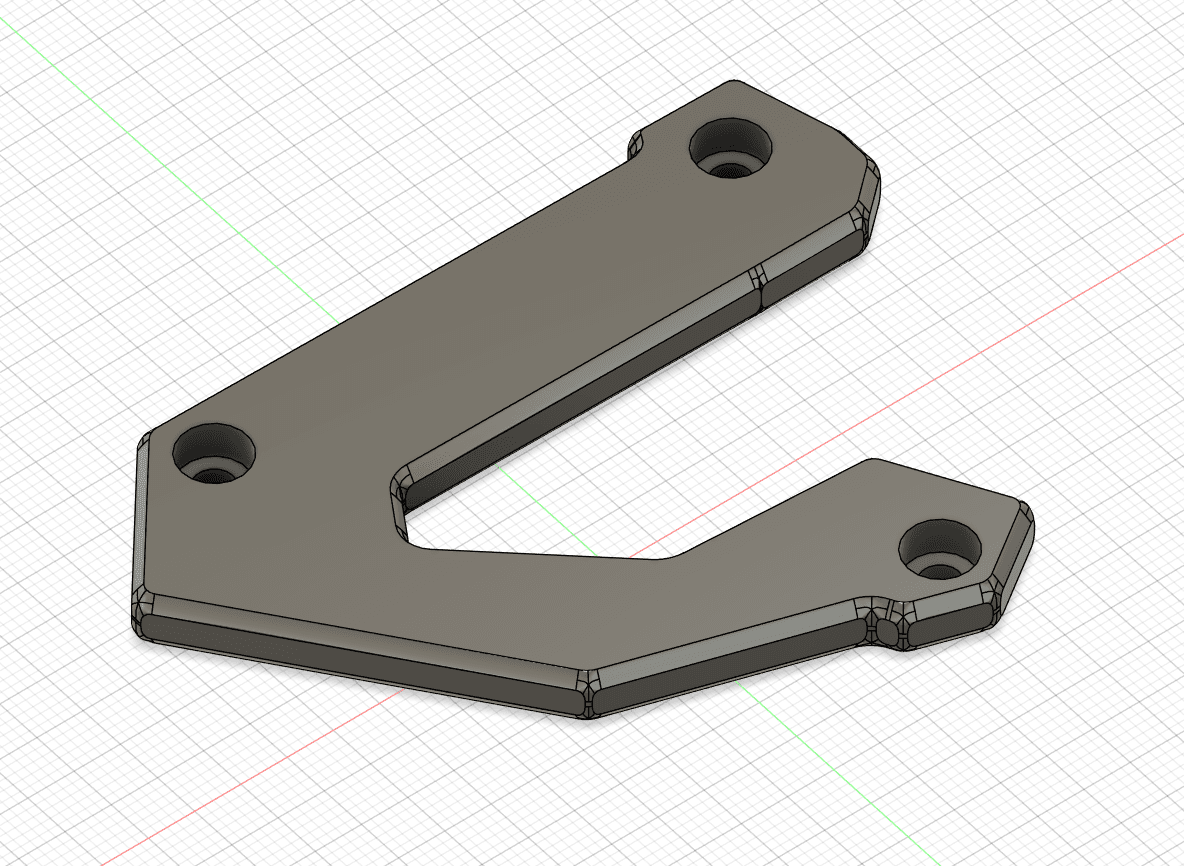

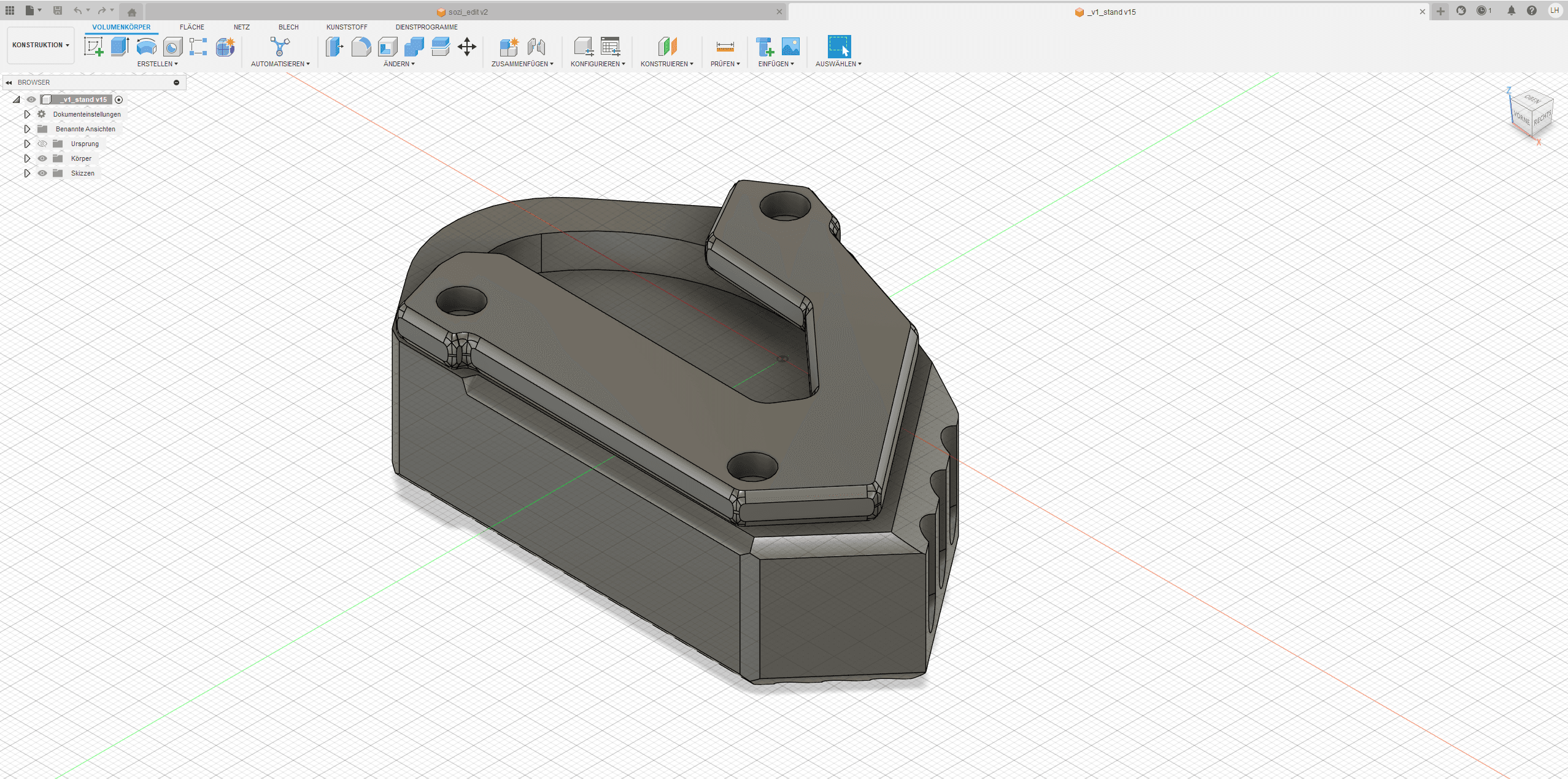

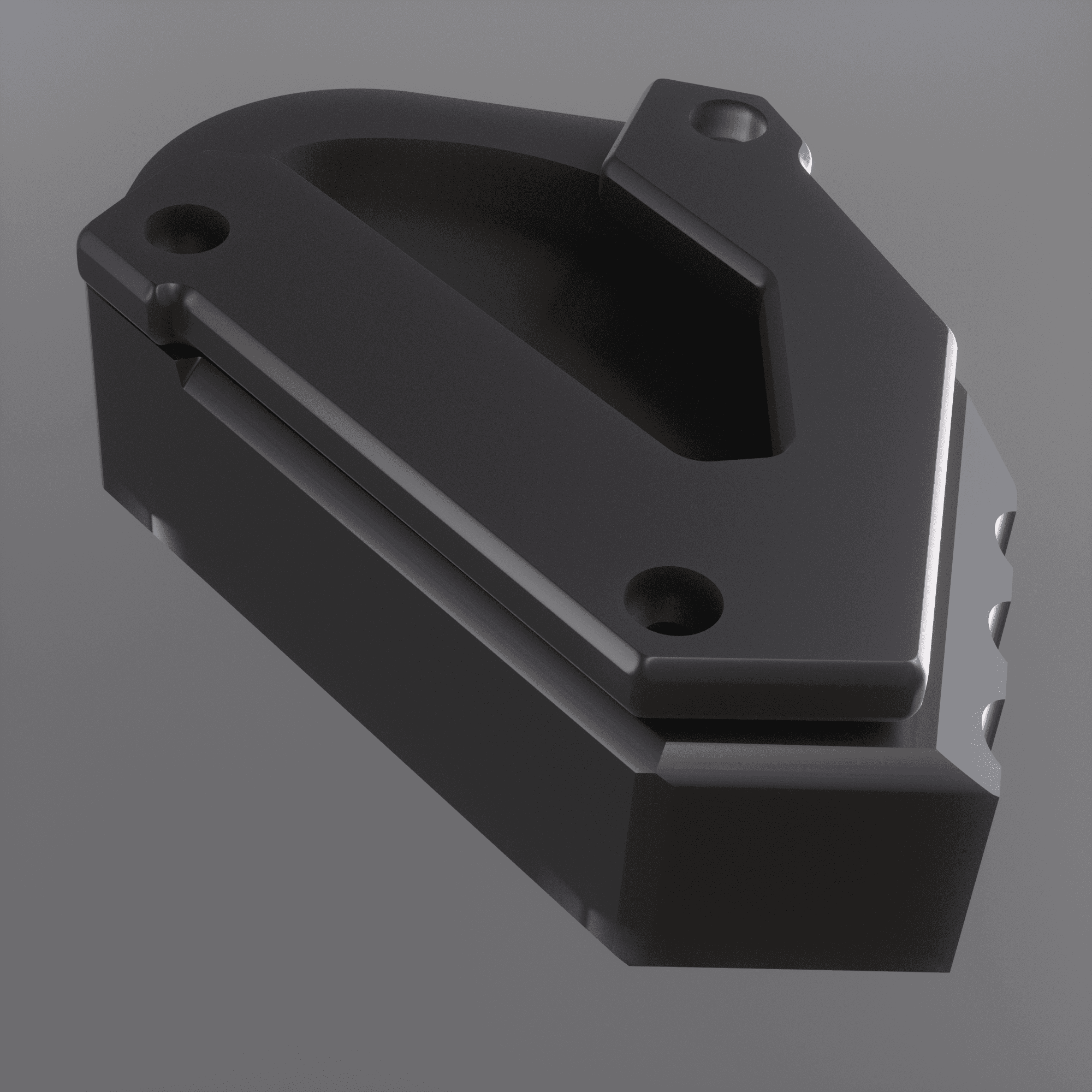

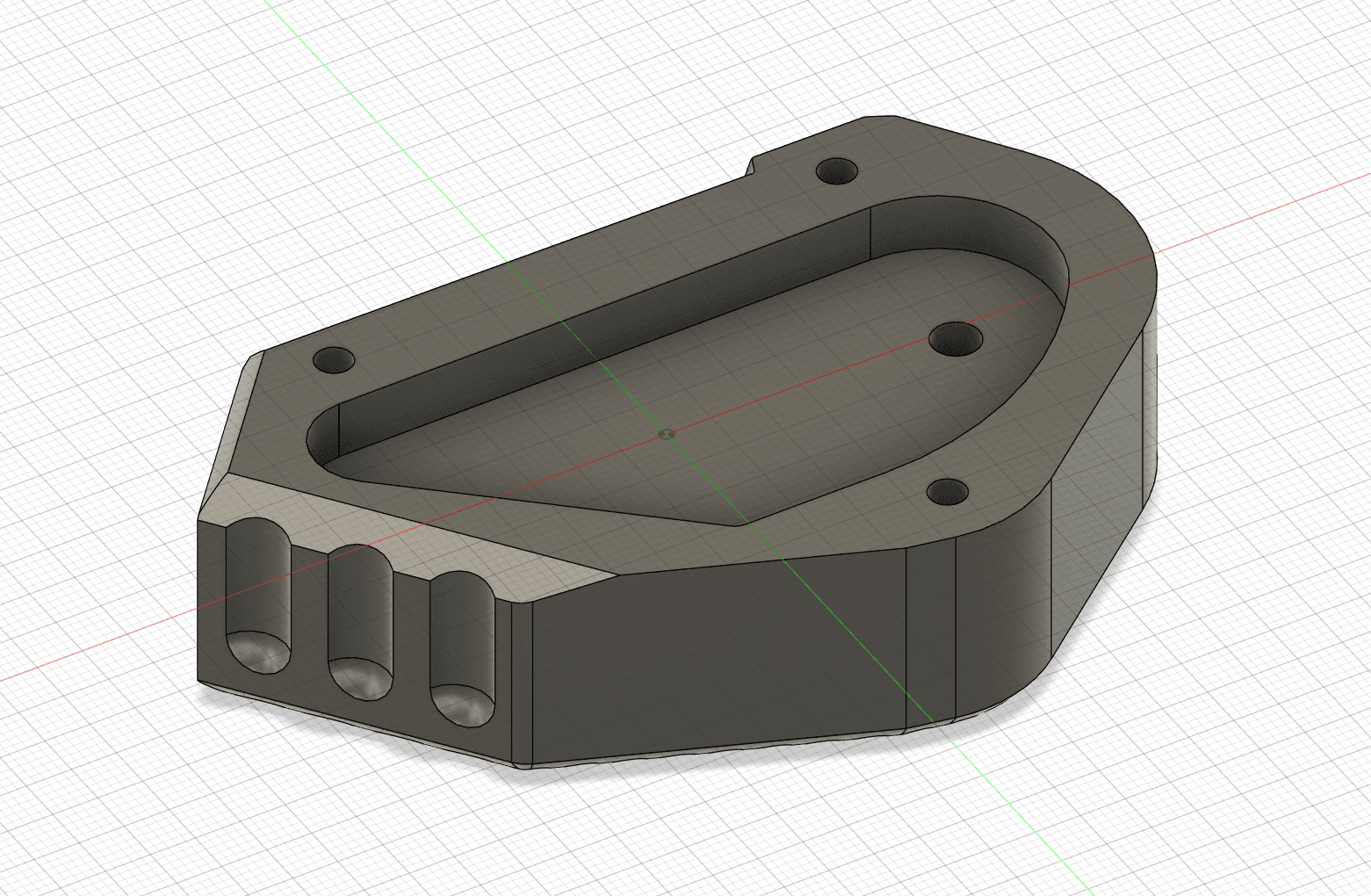

Motorcycle Side Stand Extension
A technical part designed to extend the motorcycle’s side stand for improved stability on uneven surfaces. The piece was modeled with precise measurements to ensure proper alignment and durability once printed.
